The punching tool PP 41-00 is used for side cutting lateral eyes in disposable medical catheters.
The punching tool PP 41-00 is used for side cutting lateral eyes in disposable medical catheters.
This is done to prevent the open catheters. This is done to prevent the open catheter tip to stick to the mucous membrane, or with the closed tip catheter to allow drainage function of the catheter.

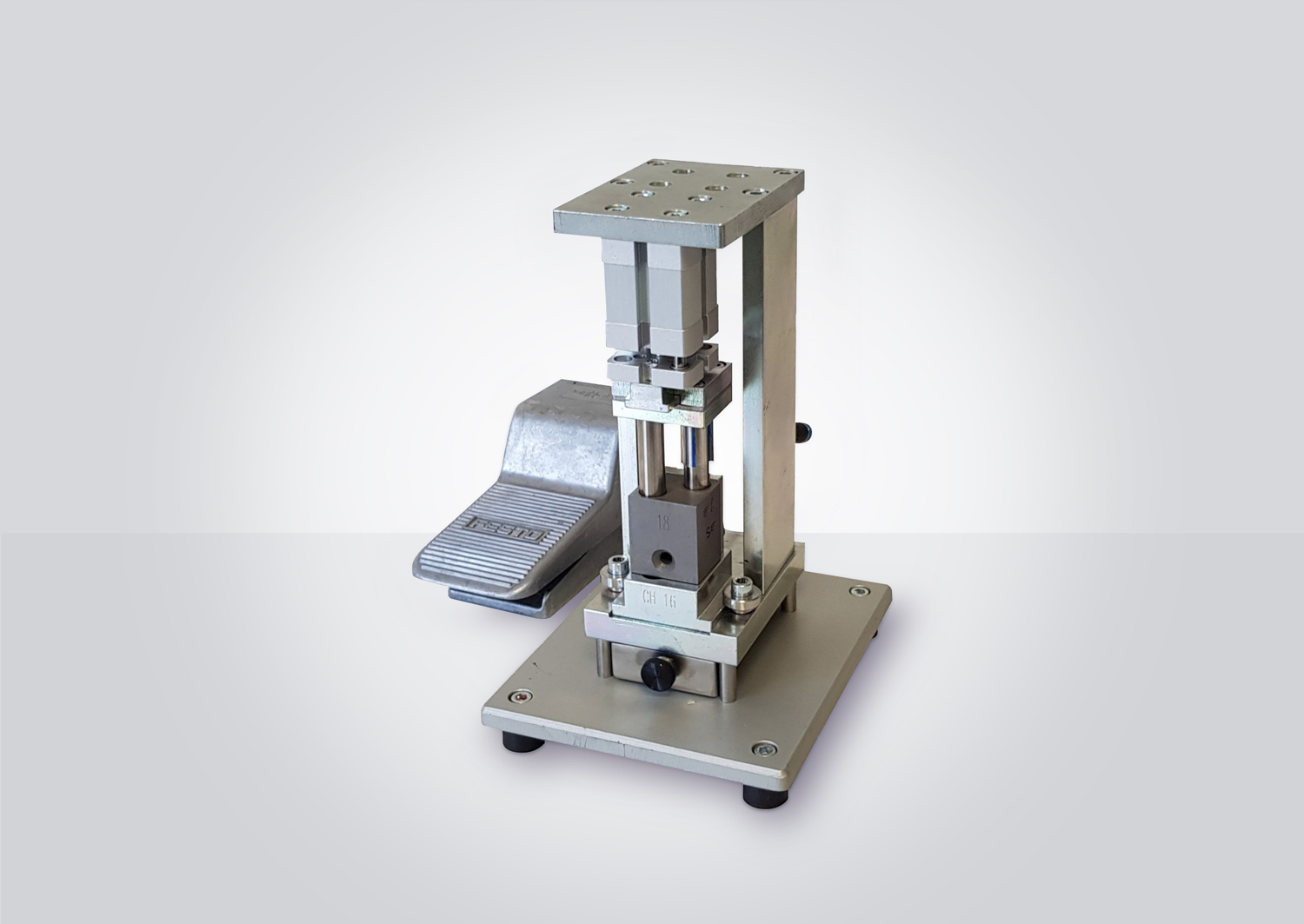

The PP 41-00 is pneumatically driven; an air cylinder activates the two punching needles. The air cylinder is controlled with a foot pedal. When the foot pedal is pressed, the air cylinder presses the needles down and pulls them back up when the pedal is released.
It is recommended to operate the machine in a clean environment.

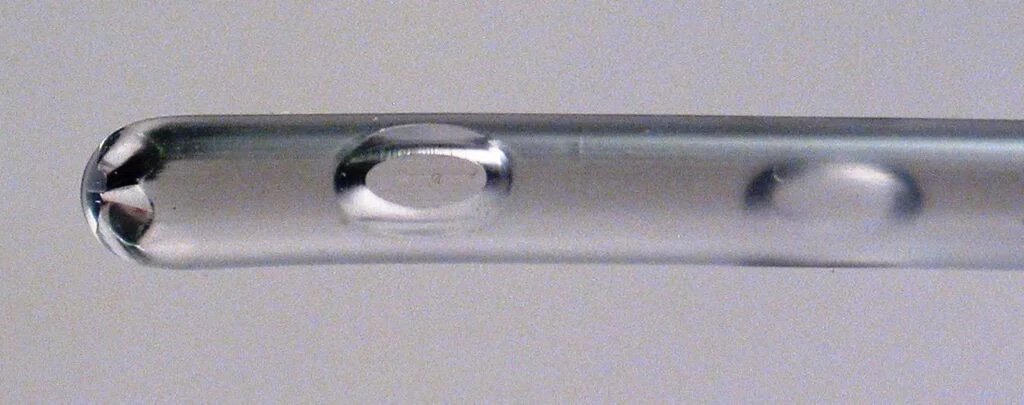

Punch tool for punching of 2 lateral Eyes.
Can be updated for punching of multiple holes = Punchtrain.
Punch tool for punching of 2 round relieving eyes.
Can be updated for punching of multiple holes = Punchtrain.
SPECIFICATIONS
Production capacity:
The production capacity is between 1.200-1.400 units per hour. Depending on the CH size of the tube and the experience of the operator.
Tube specifications:

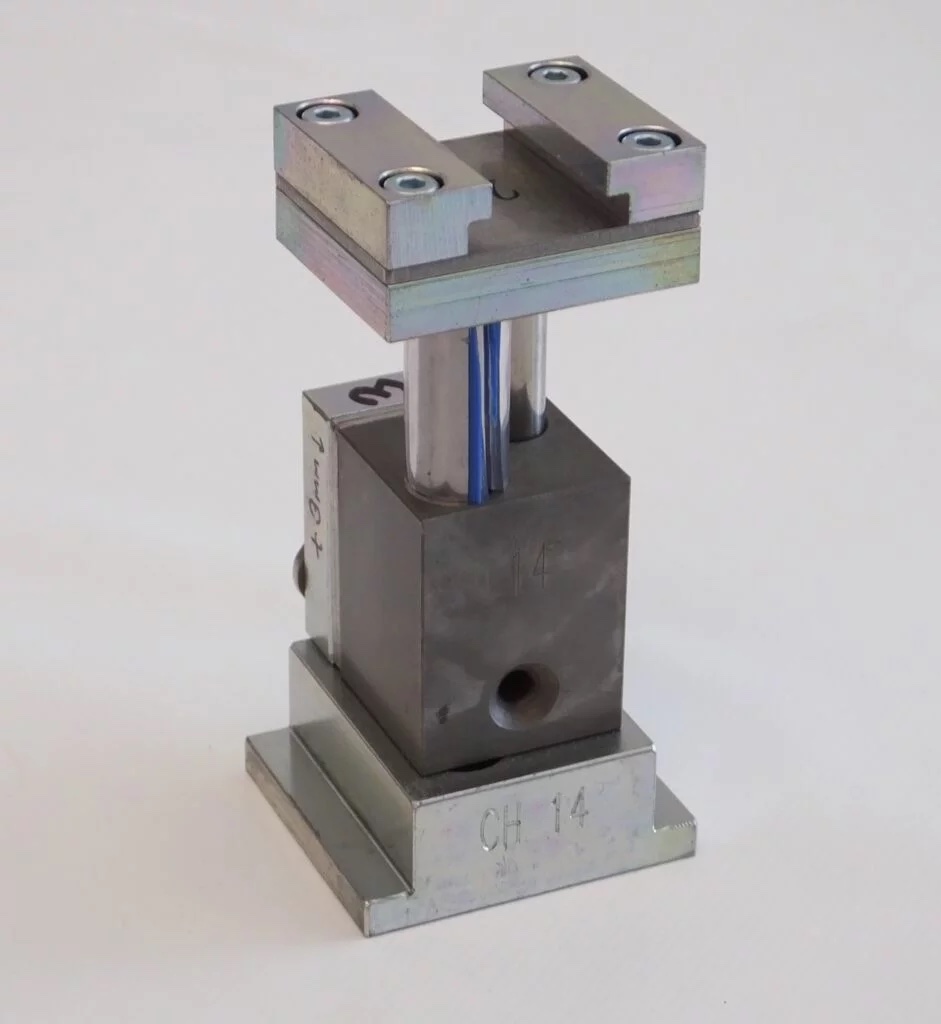

Tube Diameter: CH/Fr 3-35. (One punching tool is used for each CH size/eye pattern)
Tube Material: Most thermoplastics.
Tube Length: Infinite.
Installation:
Required Space: Length app. 180mm, width 150mm, height 250mm.
Compressed Air: 8 bars of cleaned and dried air.
Please contact Jacob Søbygaard for more information about the PH 41-00 - Side Punch Press
With the punching press PP 51-00, 2 top cut lateral eyes are punched in disposable medical catheters.
The soft eye forming machine is designed to punch two top cut lateral eyes and then form the outside cutting edge on the punched eyes on disposable medical catheters produced from thermoplastic material.
