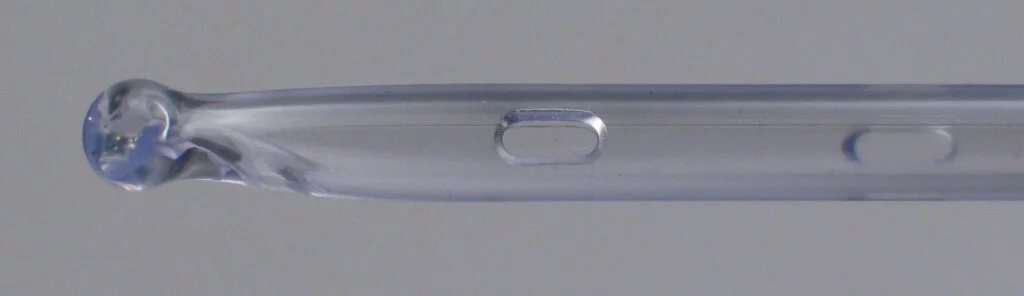

With the punching press PP 51-00, 2 top cut lateral eyes are punched in disposable medical catheters.
With the punching press PP 51-00, 2 top cut lateral eyes are punched in disposable medical catheters.
This is done to prevent the open catheter tip to stick to the mucous membrane, or on the closed tip catheter to allow the drainage function of the catheter. Due to the punch design, the eyes can be punched after the tip forming.
The eye is punched from the top, which leaves a small mark on the inside of the tube. This mark is a quality sign, conforming that the punch excess has been removed from tube.
The punching tools are mounted in a pneumatic driven punch press and are operated by a foot pedal. An electrical switch system can be supplied as an option.
To remove the punch excess, the punching tool has to be connected to both a filter housing and a vacuum pump.
It is recommended to operate the machine in a clean environment.
SPECIFICATIONS
Production capacity:
The production capacity is between 1.000-1.200 units per hour. Depending on the CH size of the tube and the experience of the operator.
Tube specifications:
Tube Diameter: CH/Fr 5-35 (one punching tool is used for each CH size and eye pattern).
Tube Material: Most thermoplastics.
Tube Length: Infinite.
Installation:
Space: Length app. 400m, width 170mm, height 140mm.
Compressed Air: 6 bars of cleaned and dried air.
Please contact Jacob Søbygaard for more information about the multi eye drilling machine
The punching tool PP 41-00 is used for side cutting lateral eyes in disposable medical catheters.
The soft eye forming machine is designed to punch two top cut lateral eyes and then form the outside cutting edge on the punched eyes on disposable medical catheters produced from thermoplastic material.
