GF+MF - GLASS AND METAL MOULDS

Standard tip form molds

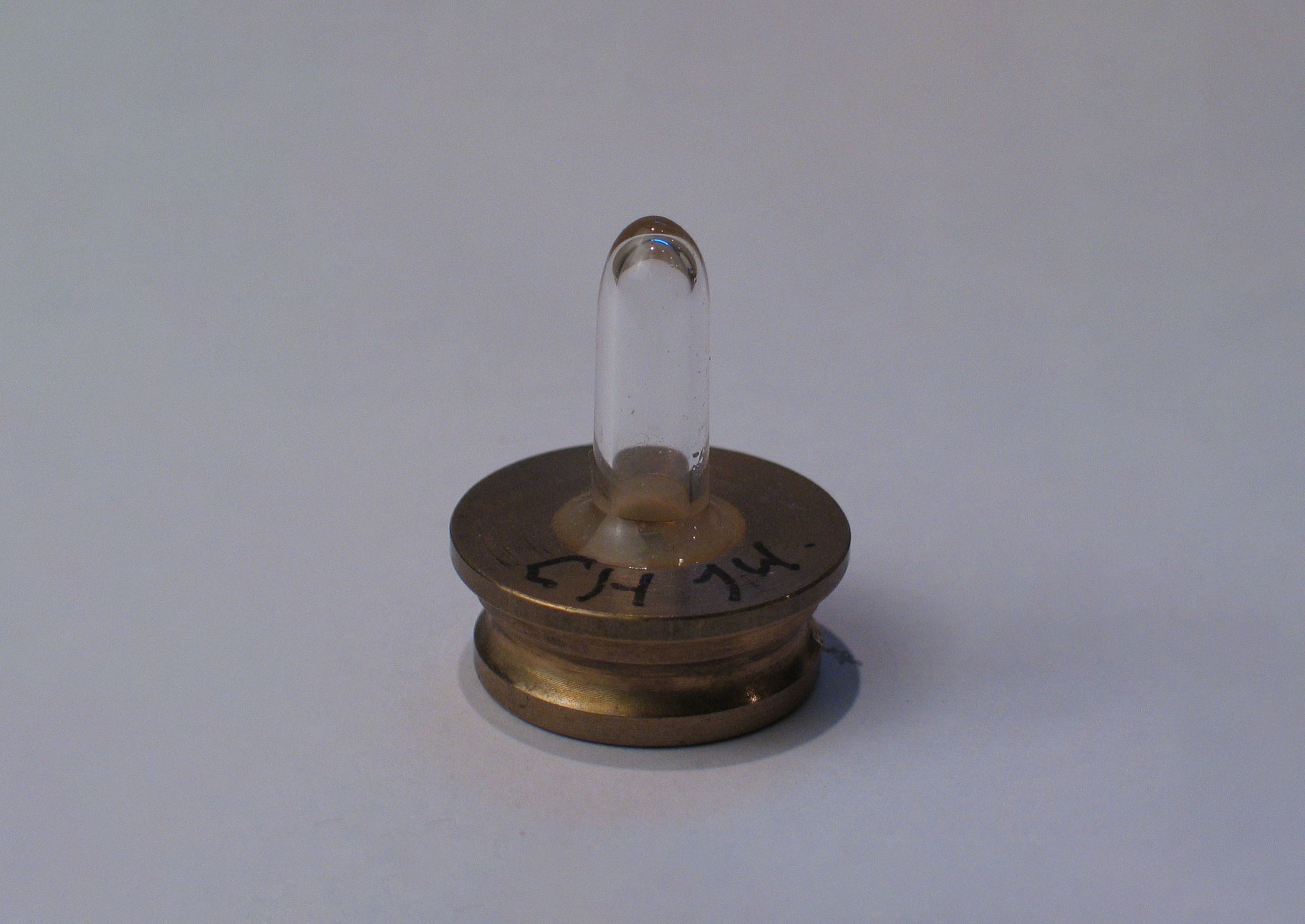

Nelaton glass molds: CH 3-36

Nelaton micro moulds: Ø 0,5-1,5 mm

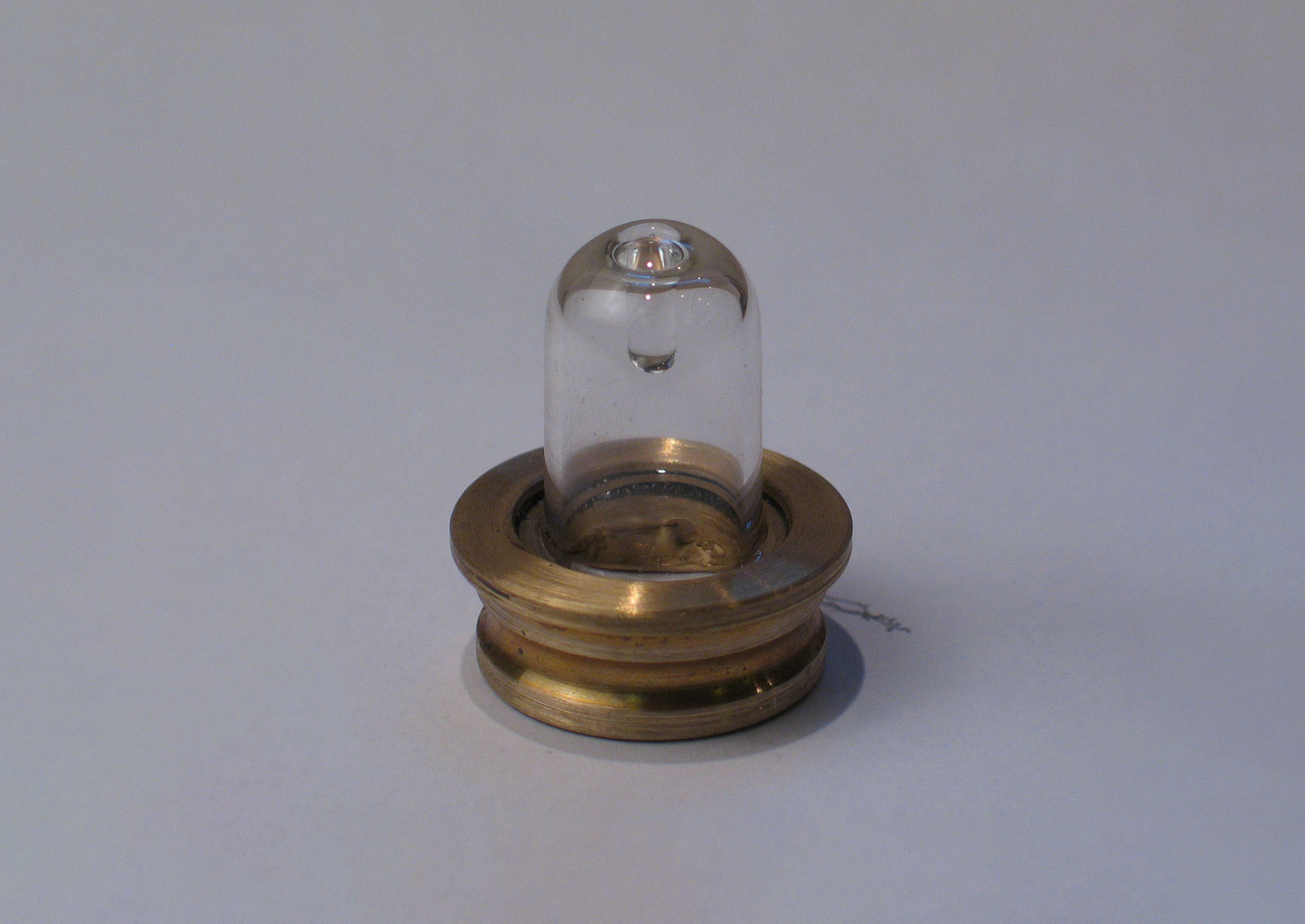

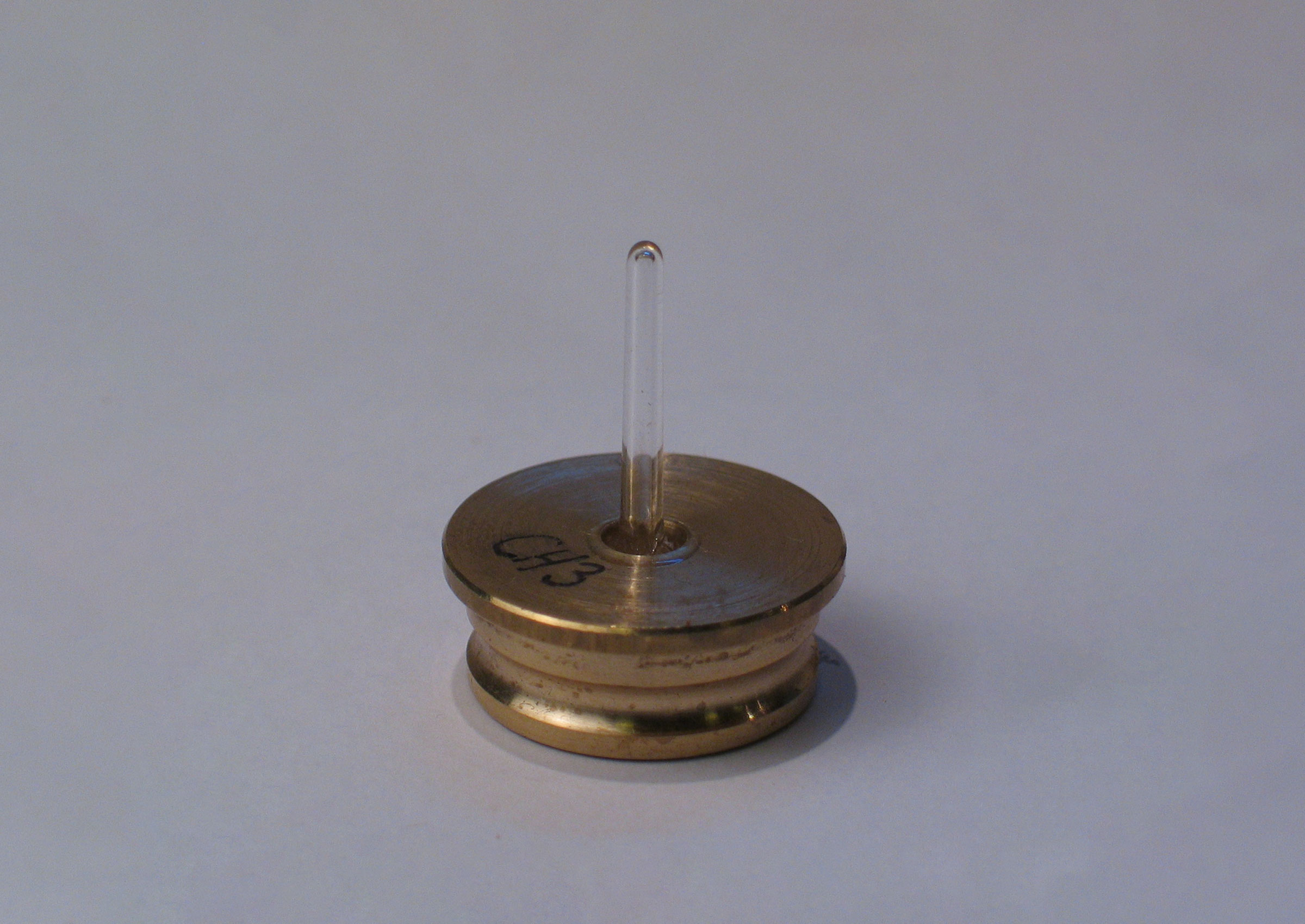

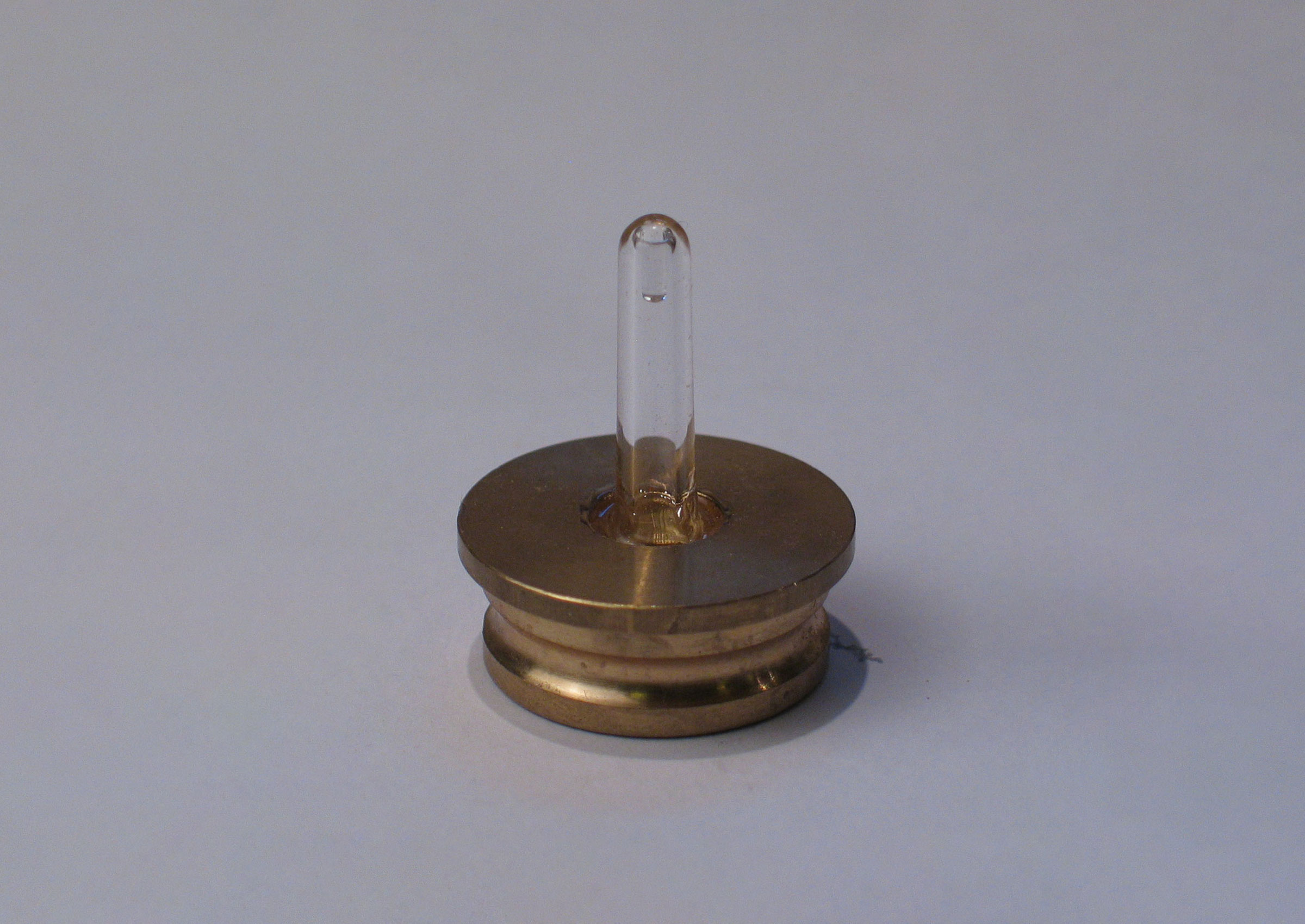

Open tip glass , with inside mandrel mouls: CH 3-36

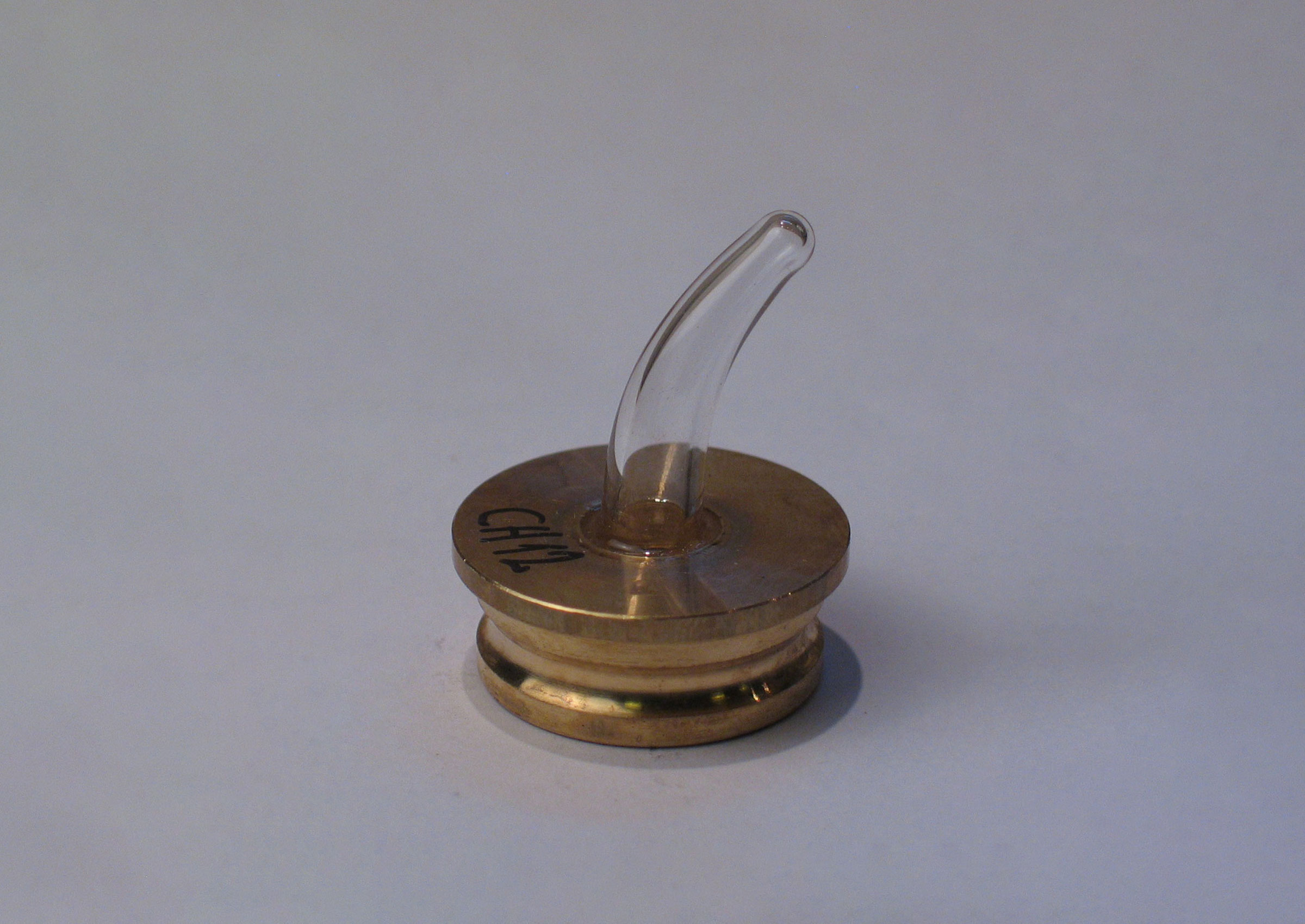

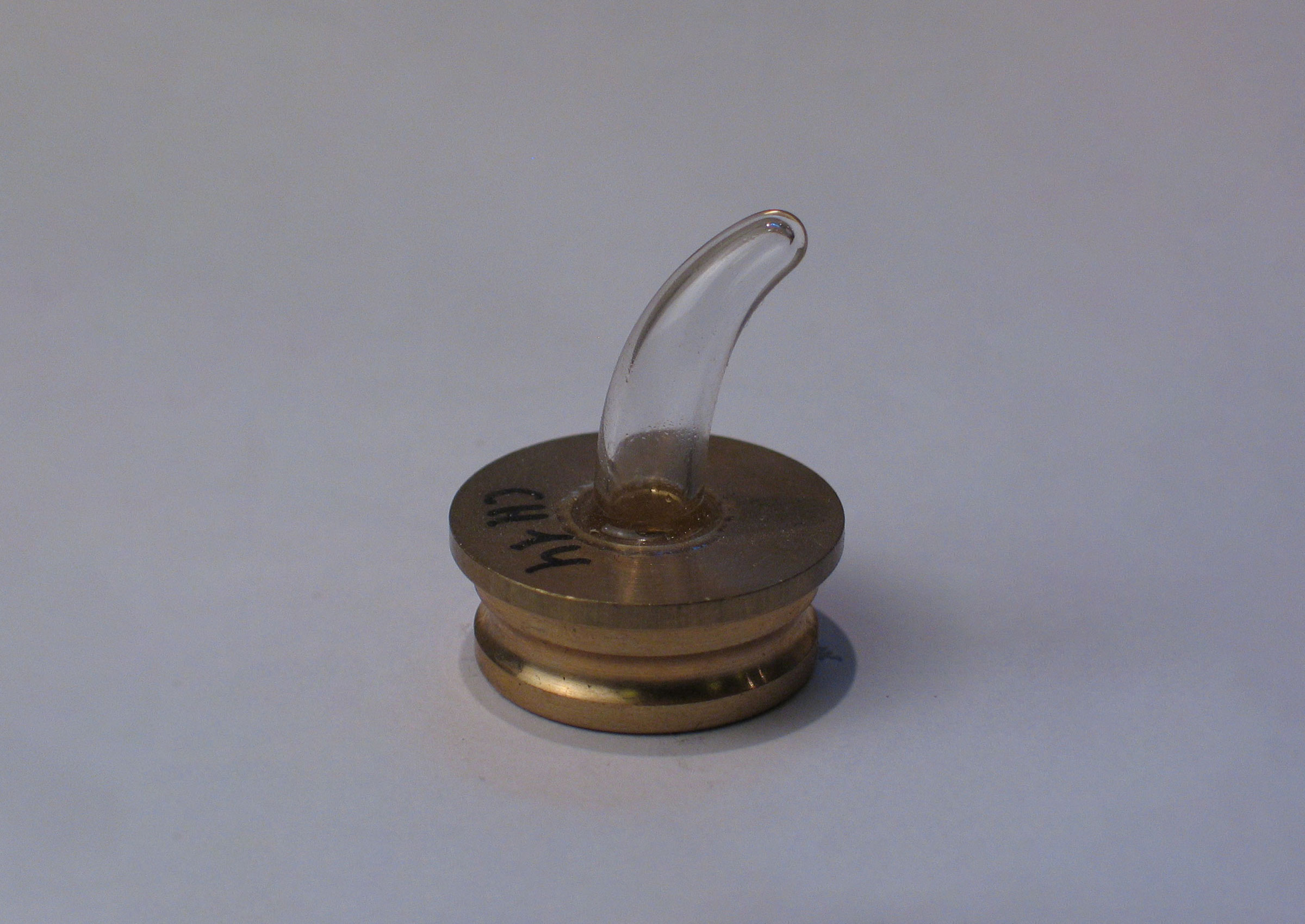

Tiemann glass molds with/without ball: CH 5-36

Coude /Whisletip nickel molds: CH 6-6

We also offer glass and metal tip forming molds on customers demand. With our wide range of tip forming molds, most customer specifications can be met.

Customer specific glass and metal tip form molds

• Conical open tip
• Conical closed tip
• Open rounded tip
• Multilumen closed/open tip

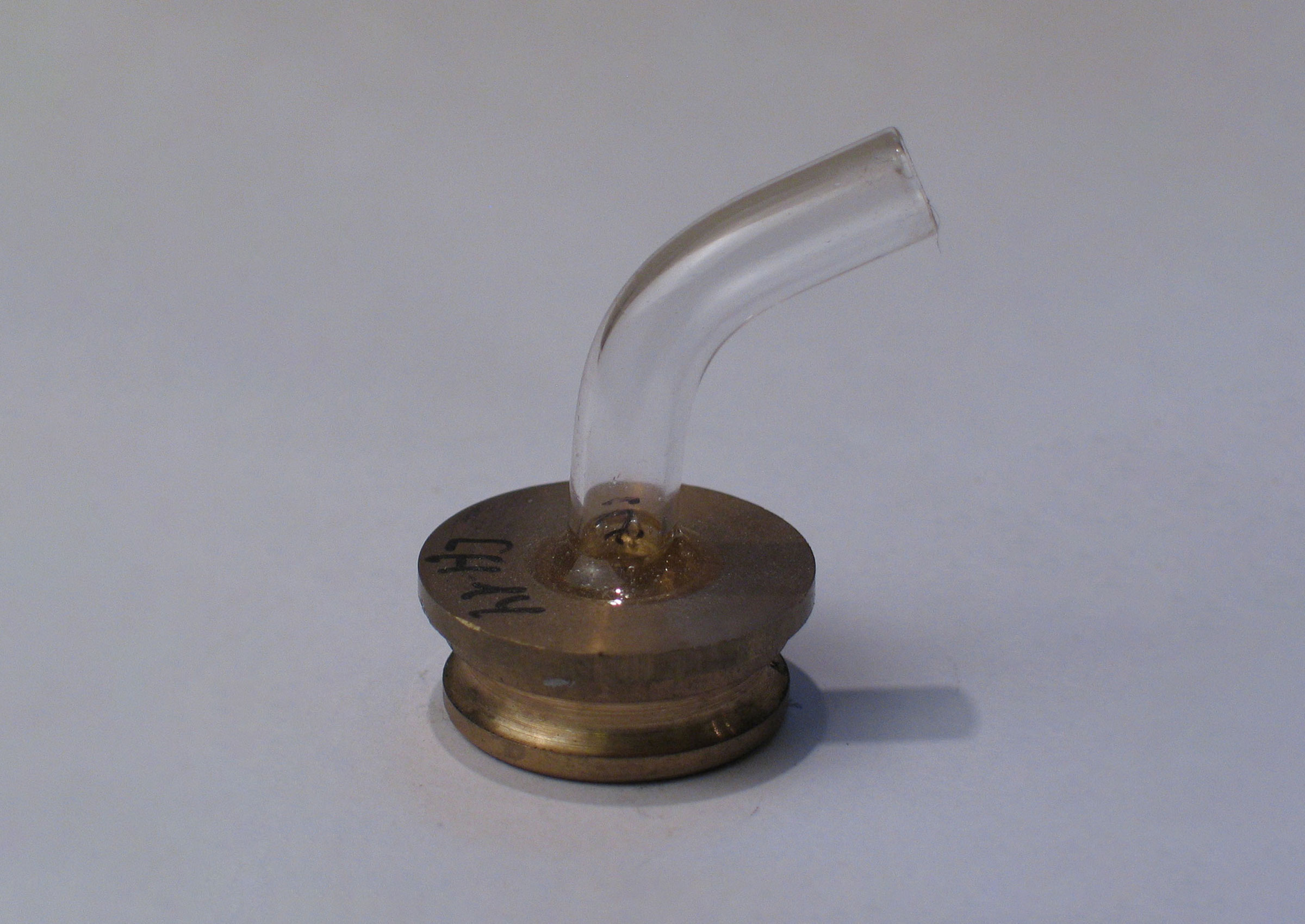

• Tube bending
• Tube diameter reducing
• Tube welding

Depending on the form, the mold will be fabricated in either glass or metal. All glass and metal molds are glued into a standardized brass bushing that will adapt into our tip forming machines.
