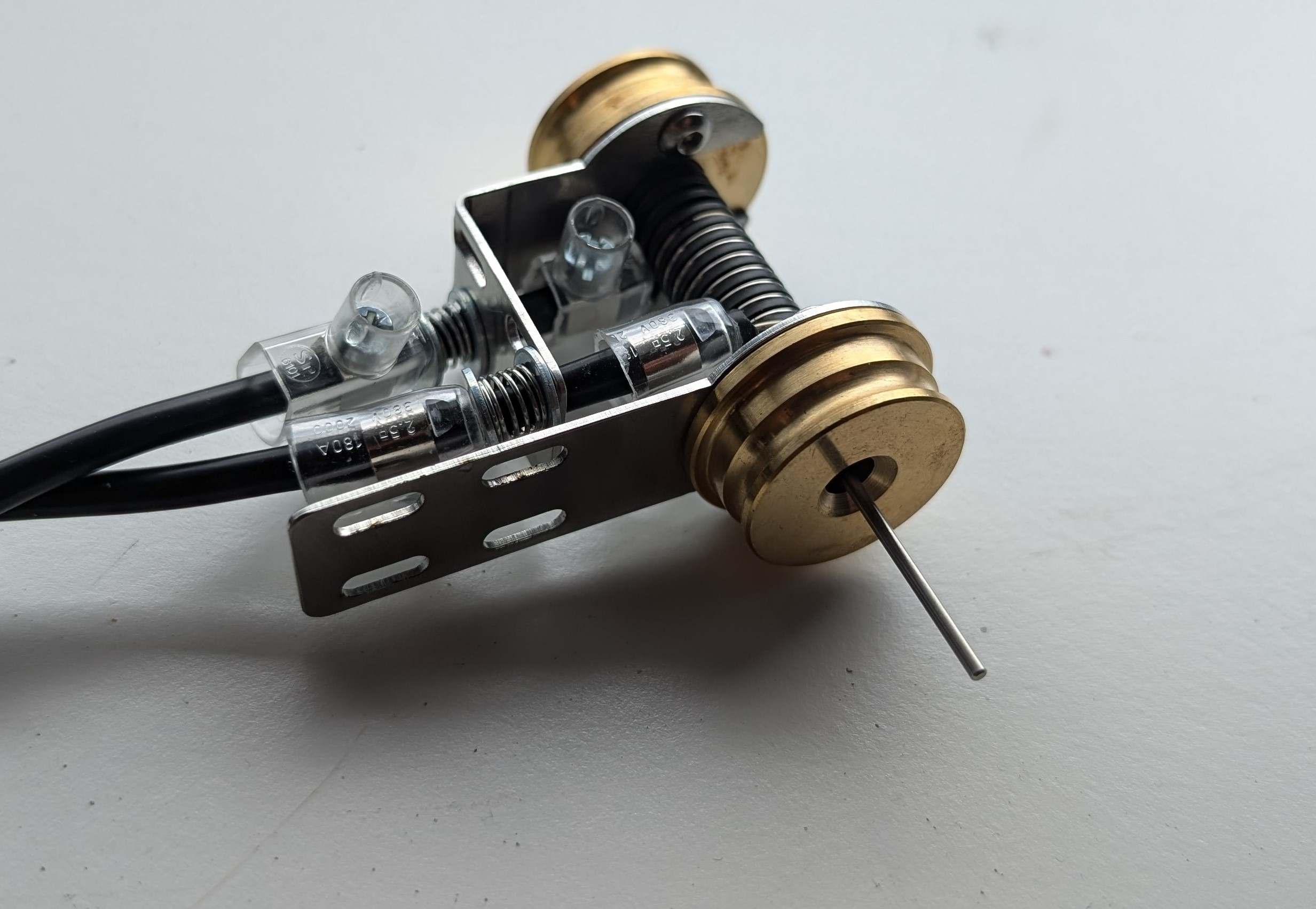

SP-MF - METAL MOULDS
The moulds are designed to the design provided by our customers.
SP 02-03 – ADVANCED TIP FORMING

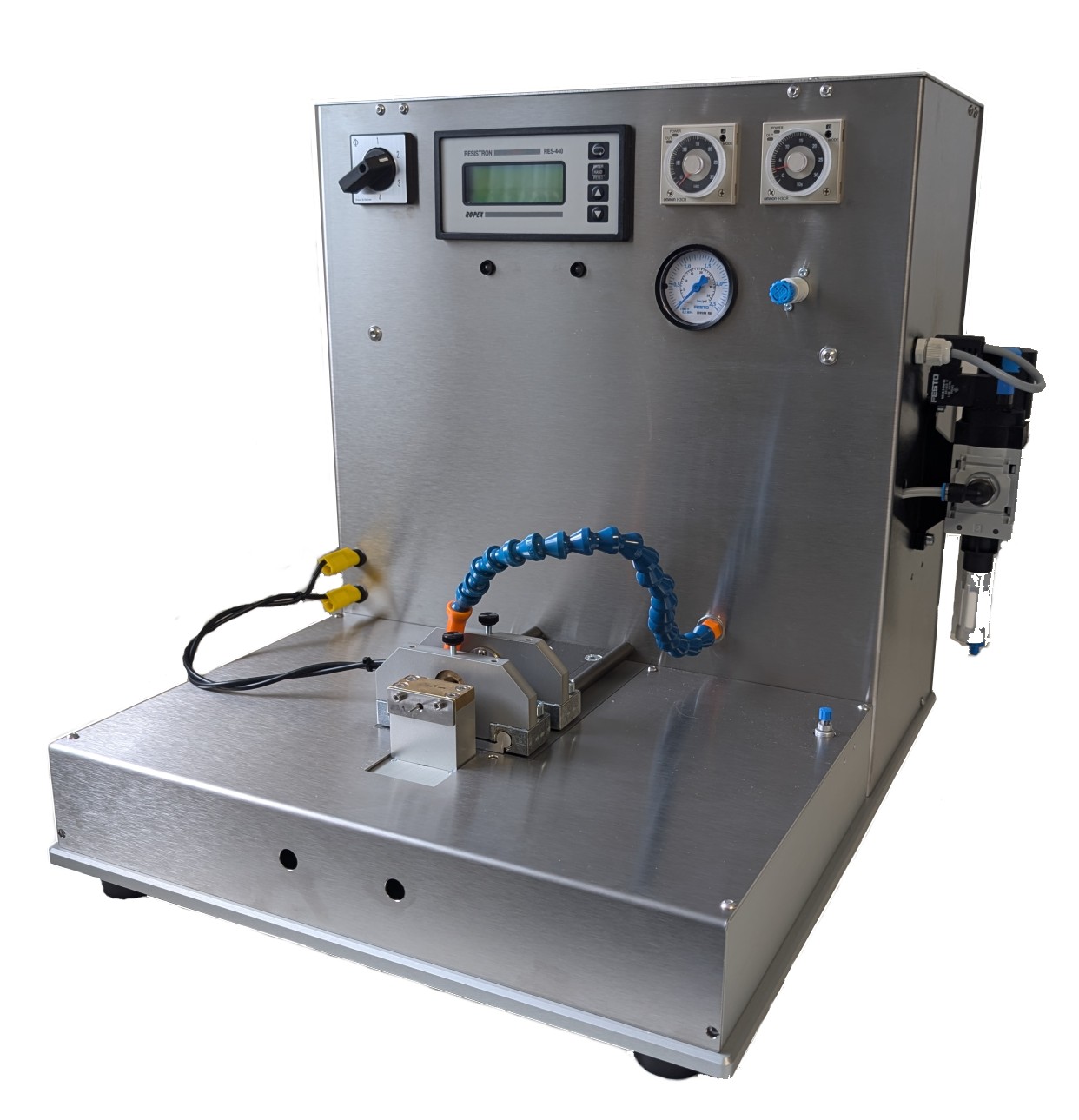

The Tip form machine is designed to form the more advanced catheter tips in thermoplastic material.
Forming takes place by placing the catheter tube in an electrical heated metal mould. The mould is heated electrical to a specified temperature for a given period of time. The heated mould causes the plastic material to melt, and by pressing the tube into the mould the desired tip shape is obtained. The shape is stabilized by cooling the mould and the tube for a certain time.
Environment
It is recommended to operate the machine in a clean environment..
Control panel
To ensure a constant production rate and quality, the process parameters are stored to the PLC via the control display. The heating temperature, heating and cooling time can be controlled and stored.
Watch our video of the machine

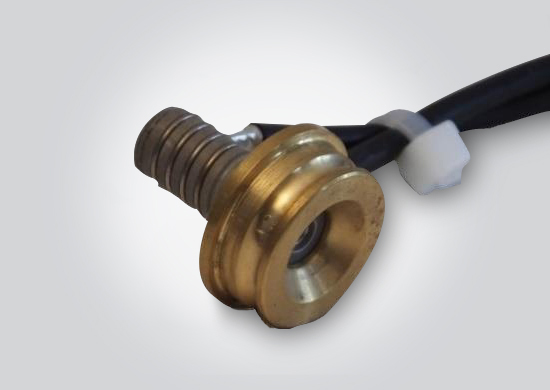

ACCESSORIES FOR THIS PRODUCT
SPECIFICATIONS
Production capacity:
The production capacity is between 200-350 units per hour. Depending on the CH size of the tube
and the experience of the operator.
Tube specifications:
The SP 02-03 is designed to tip the small sized catheters with a more advanced shape, as the
mould temperature can be controlled very precise.
Tube Diameter: CH/Fr 3-18.
Tube Material: Most thermoplastics.
Tube Length: Infinite.
Tube Shape: Closed, open or curved tip.
Installation:
Power: 1×230 V AC 50-60Hz 10A.
Compressed Air: 8 bars of cleaned and dried air.
More info on the product?
Please contact Jacob Søbygaard for more information about the advanced tip forming machine
