TH - TIP TRIMMING TOOLS
Depending on the tube and the task to be done, we have different trimming tools.
TT 24-00 - TIP TRIMMING MOTOR

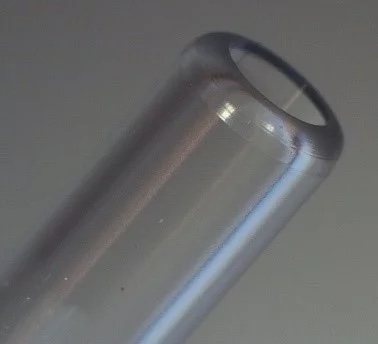

Tip trimming is used to produce a smooth outside rounding on an open tip suction catheter. The tip trimming takes place with a trimming head.
In principle a trimming head is a wedge for holding a bent razor blade in place, and by rotating the trimming head, the radius on the tube tip is formed. One razor blade lasts for several hundred thousand trimmings in PVC and the razor blade is easy to replace. The trimming head is driven by a frequency regulated AC motor. The shavings are collected in a drawer.
Tube specifications
The trimming heads can be used on soft tube material such as PVC, Silicone, PE and PTFE, in the sizes CH 5 to CH 40. One trimming head is used for each tube size and radius.
Environment
The tip trimming machine is recommended to be operated in a clean room environment.
Watch our video of the machine
ACCESSORIES FOR THIS PRODUCT
SPECIFICATIONS
Production capacity:
The production capacity is between 1.000 – 1.200 units per hour, depending upon the CH size of the tube and the experience of the operator.
Tube specifications:
Tube Diameter: Ch/Fr 5-40 (One trimming head is used for each tube size)
Tube Material: All thermoplastics and silicones.
Installation:
Required Space: Length app. 400mm, width 150mm, height 180mm.
Power: 1x230 V AC 50-60Hz 10A.
More info on the product?
Please contact Jacob Søbygaard for more information about the tip trimming motor
