With the punch tool PP 37-00, 2 x 2 round lateral eyes are punched in disposable medical catheter tubes.
With the punch tool PP 37-00, 2 x 2 round lateral eyes are punched in disposable medical catheter tubes.
The punching tools are mounted in the punch press and powered by 2 pneumatic cylinders. These are operated by a foot pedal.

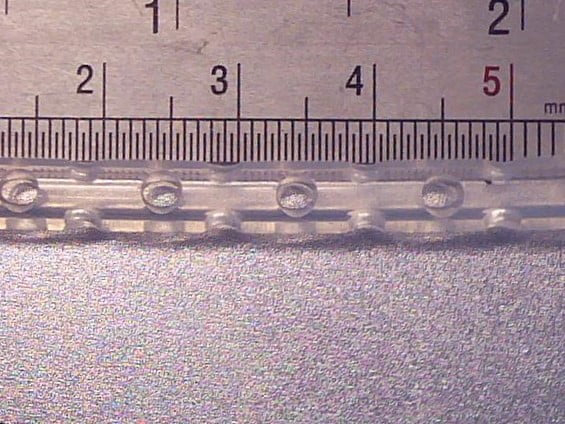

An eye pattern of 2 x 2 round lateral eyes is punched in each operation. The 2 eyes are punched 90° opposite for each other. Additional eyes are punched by forwarding the tube to the next eye punch press position. The eye position can be read on the ruler.

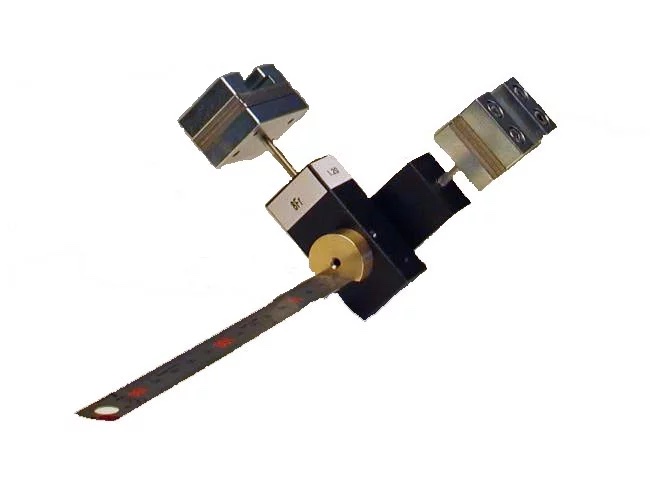

PP 37-00 CH-8 cross punch tool.
It is recommended to operate the machine in a clean environment.
Punch tool for punching of 2 round relieving eyes.
Can be updated for punching of multiple holes = Punchtrain.
SPECIFICATIONS
Production capacity:
The production capacity is between 800-1.400 units per hour. Depending on the CH size of the tube and the experience of the operator.
Tube specifications:
Tube Diameter: CH/Fr 4-35. (One punching tool is used for each CH size/eye pattern)
Tube Material: Most thermoplastics.
Tube Length: Infinite.
Installation:
Required Space: Length app. 250mm, width 250mm, height 250mm.
Compressed Air: 6-8 bars of cleaned and dried air..
Please contact Jacob Søbygaard for more information about the PP 37-00 - Cross Punch Press
The fully automatic drain machine is, in its basic version, designed for production of Redon drains. It offers a freely programmable number of cross-punched relieving eyes, hot stamped marks and cutting of the tube
