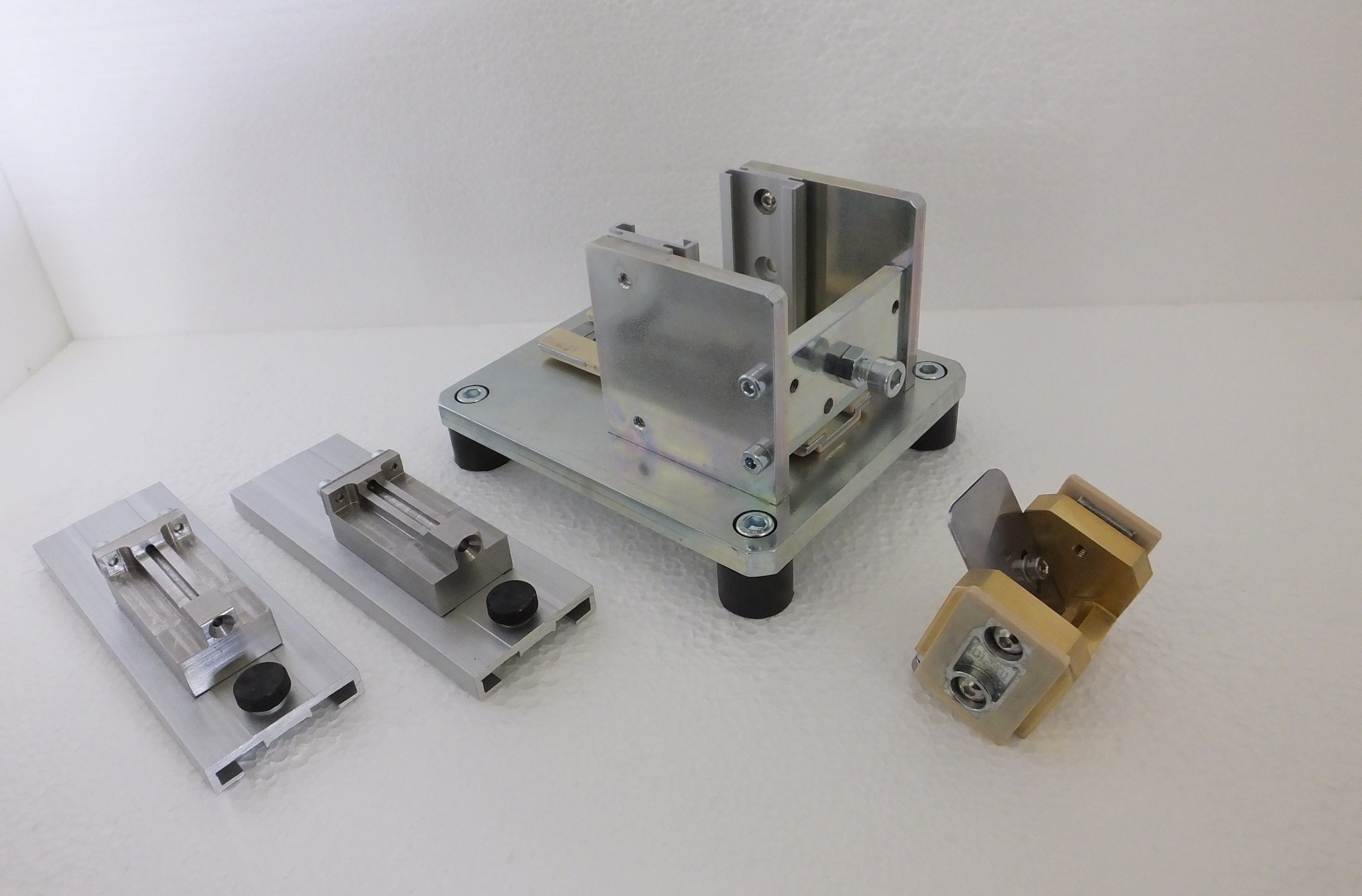

FS 01-02 Flap cutter
Tool for cutting of flap

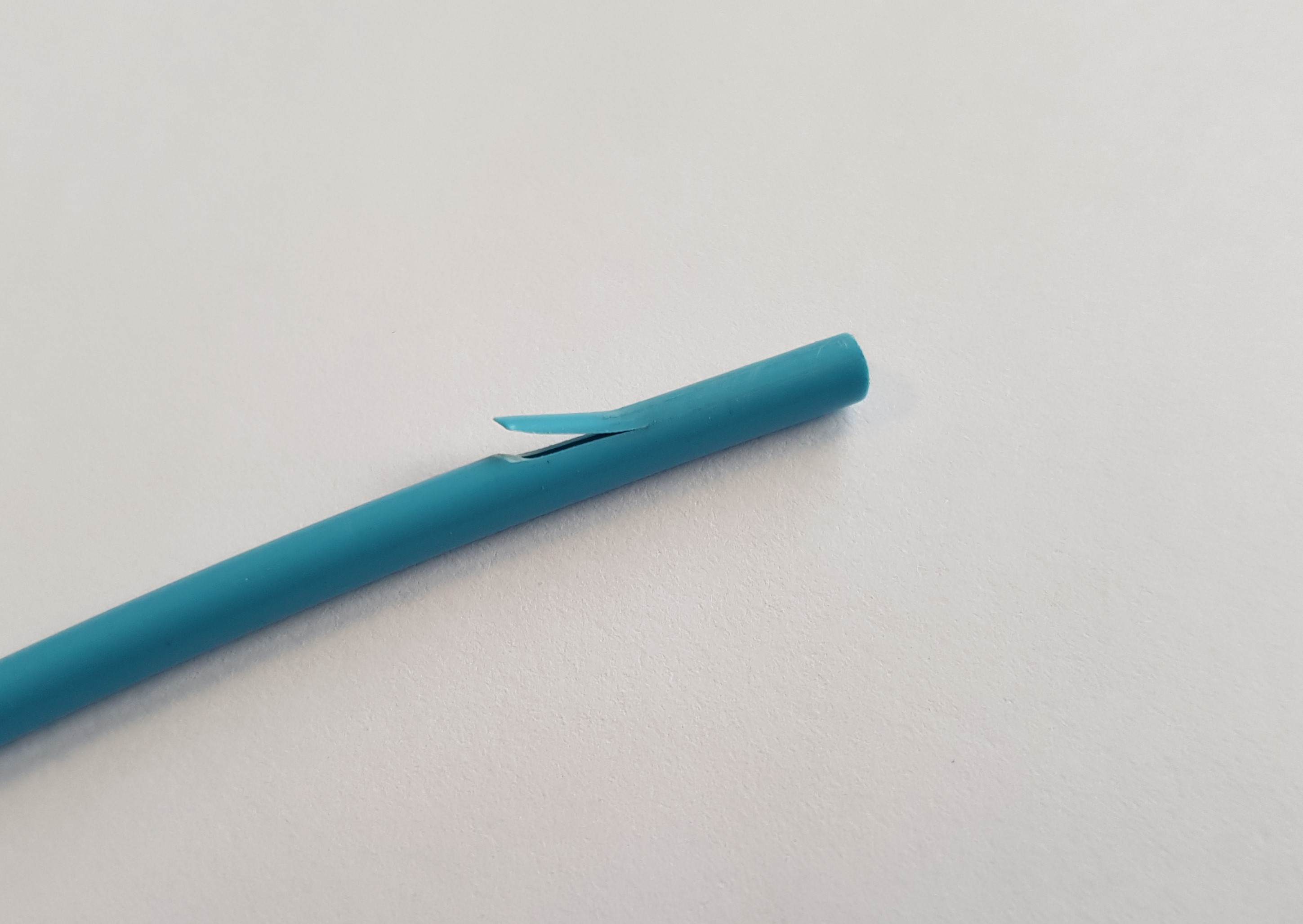

The FS 01-02 is designed to cut a flap into a catheter tube
The operator positions the tube into the tool in front of the slides the vertical cutting tool down
Environment
It is recommended to operate the machine in a clean environment.
Watch our video of the machine
SPECIFICATIONS
Production capacity:
The production capacity is between 60-100 units per hour. Depending on the Fr size of the tube and the experience of the operator.
Tube specifications:
Tube Diameter: Fr 4-12 (one toolset is used for each Fr size and cut profile).
Tube Material: Most thermoplastics.
Tube Length: Infinite.
