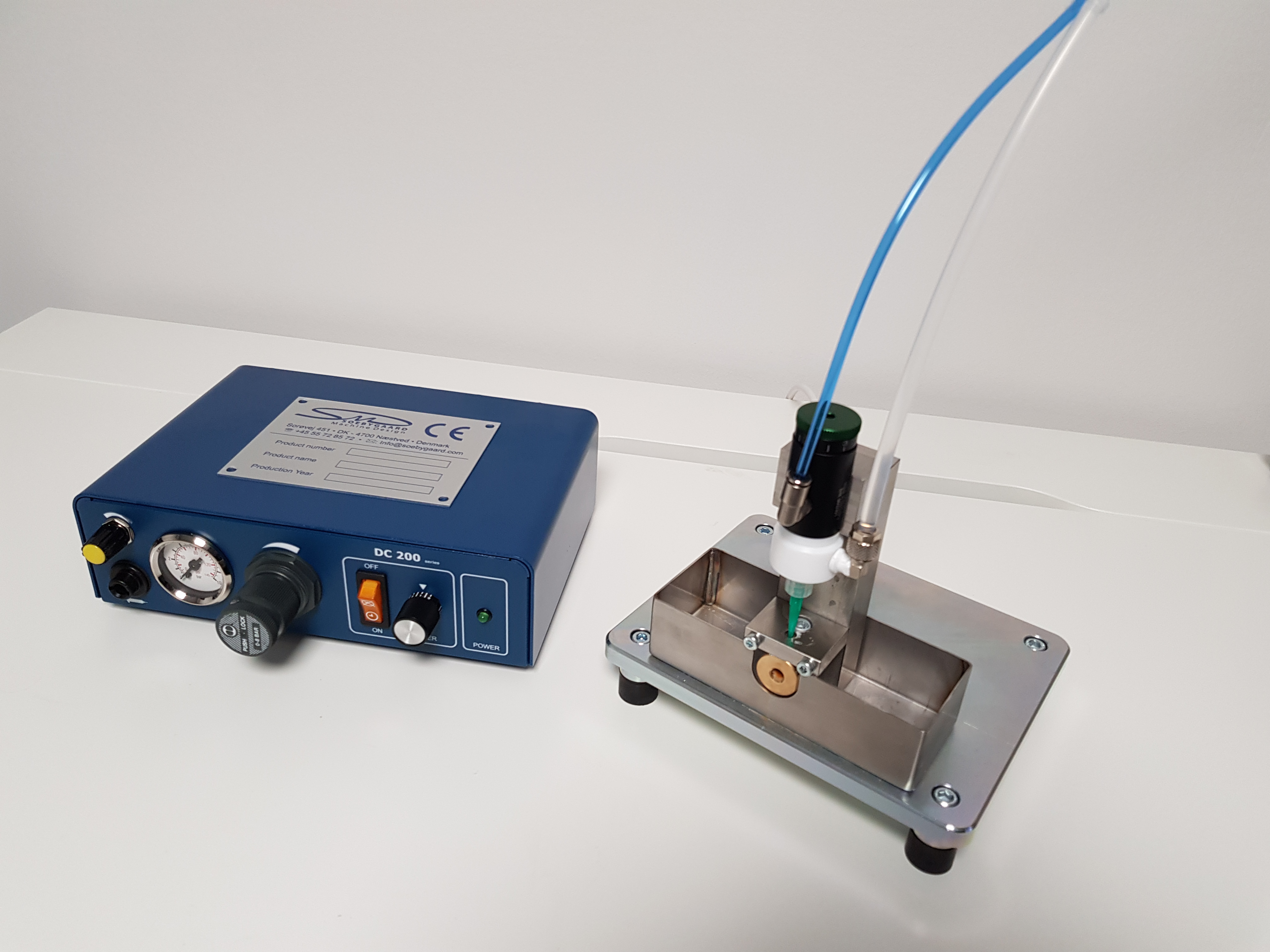

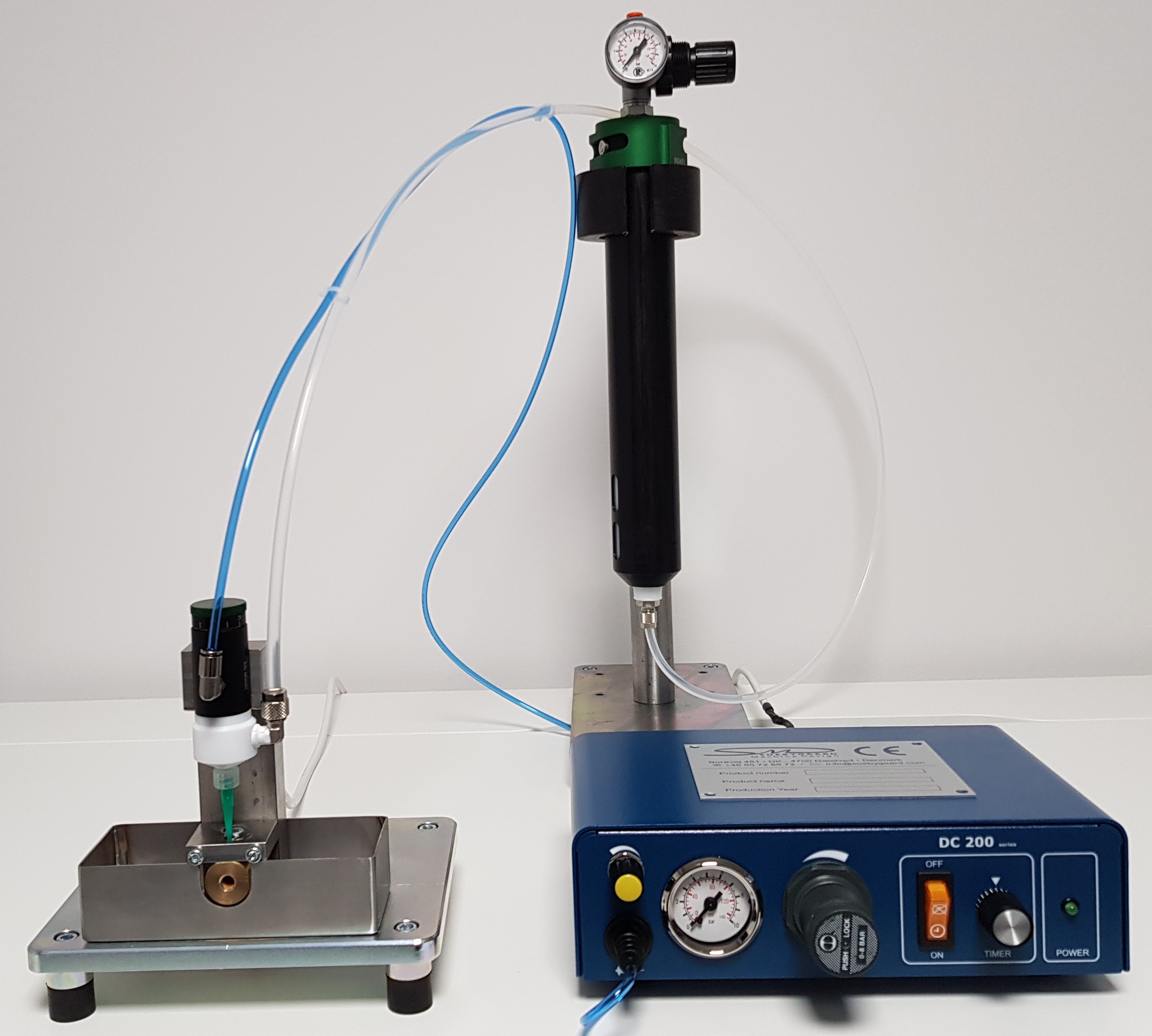

The glue dispenser station is designed to apply Cyclohexanone to medical PVC tubing.

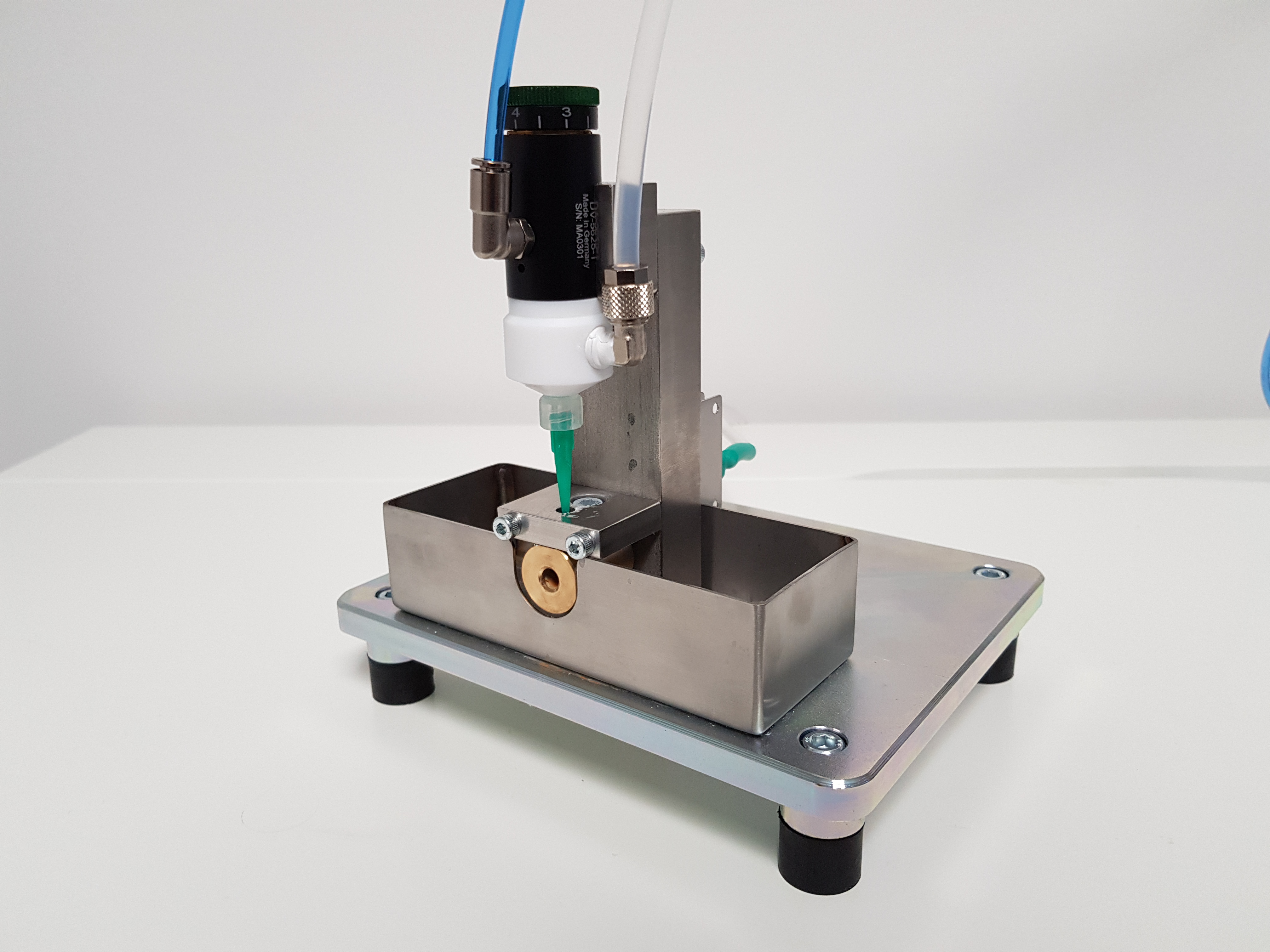

The tube is manual inserted into a glue jet, and a precise amount of Cyclohexanone is automatic applied to the tube outer surface. After applying the glue, the connector can be assembled.
It is recommended to operate the machine in a clean environment.
SPECIFICATIONS
Production capacity:
The production capacity is between 800-1.400 units per hour. Depending on the CH size of the tube and the experience of the operator.
Tube specifications:
Tube Diameter: CH/Fr 4-42.
Tube Material: Most thermoplastics.
Tube Length: Infinite.
Tube Glue: Cyclohexane
Tube Shape: Round or custom shape, for each size and form and size a specific glue jet is required.
Installation:
Required Space: Length app. 500mm, width 500mm, height 500nn.
Power: 1x230 V AC 50-60Hz 10A.
Compressed Air: 6-8 bars of cleaned and dried air.
Please contact Jacob Søbygaard for more information about the Glue Station machine
